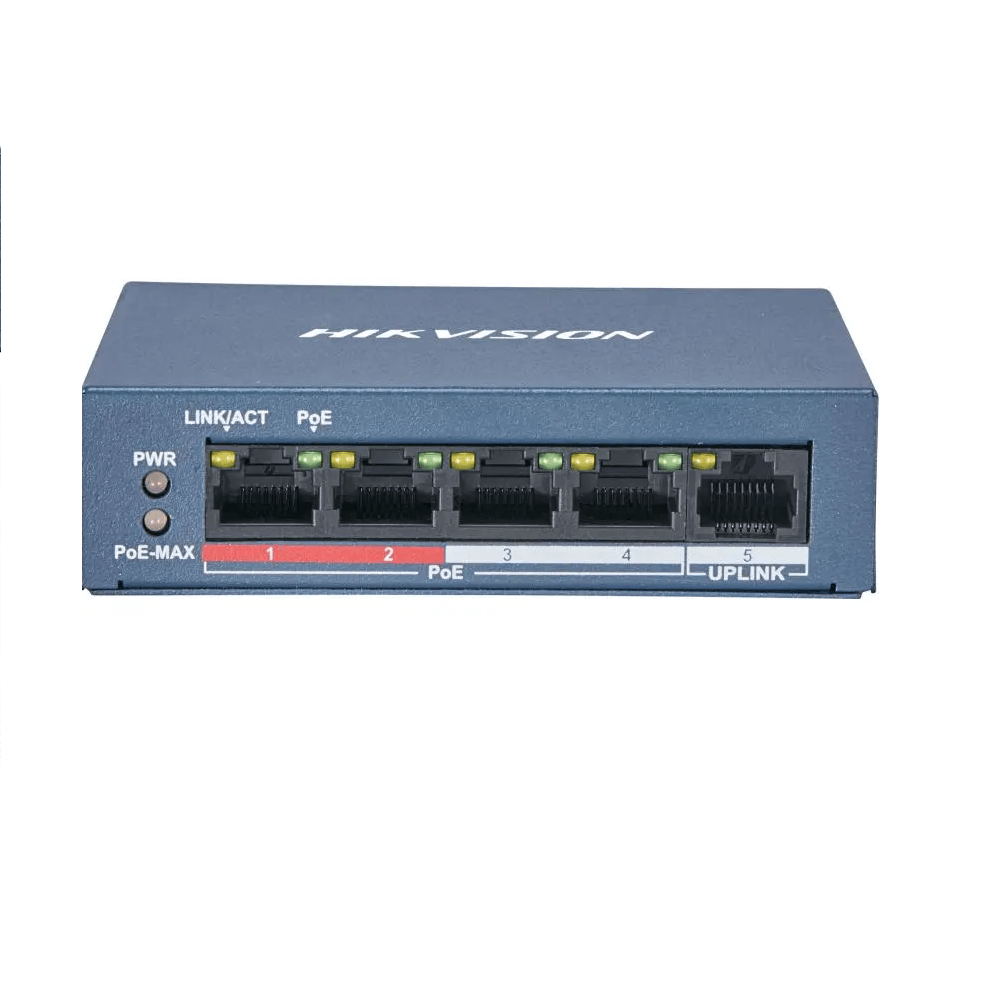

The HIKVISION DS-3E0105P-E/M(B) 4 Port Switch is a compact and affordable 4-port Fast Ethernet Unmanaged POE Switch designed for small-scale network applications. It provides reliable power and connectivity for a variety of PoE devices, including IP cameras, wireless access points, and VoIP phones.

Key Features:

• 4 Fast Ethernet PoE Ports: Supports 802.3af/at PoE standard, providing up to 30W of power per port.
• Intelligent PoE Management: Automatically adjusts power supply to prevent overload and extend switch lifespan.
• Long-Range PoE Transmission: Supports up to 300m of long-range PoE transmission for flexible device placement.
• Adaptive Power Supply: Reduces power loss on cables with 8-core power supply technology.
• Surge Protection: Protects the switch and connected devices from electrical surges for enhanced reliability.
• VIP Port Priority: Ensures priority transmission for important data during network congestion.

Applications:

• Small-Scale Surveillance: Powers IP cameras for basic surveillance systems in homes, small businesses, and retail stores.
• Wi-Fi Access Points: Supplies power to wireless access points for extended Wi-Fi coverage.
• VoIP Phones: Enables the deployment of VoIP phones for voice communication.
• Home Networking: Provides a centralized power and connectivity solution for various home network devices.

Benefits:

• Cost-Effective: Offers an affordable solution for small-scale network applications.
• Easy to Use: Plug-and-play installation with no configuration required.
• Reliable Power Delivery: Ensures stable and reliable power supply to PoE devices.
• Enhanced Network Performance: Intelligent PoE management and VIP port priority improve network efficiency.
• Flexible Deployment: Long-range PoE transmission allows for flexible device placement.

Get it on Peva Mart

For a convenient and hassle-free shopping experience, consider purchasing the Hikvision DS-3E0105P us. We offer a wide range of networking equipment, including Hikvision products, at competitive prices and with excellent customer service.

General

• Shell Metal material
• Net Weight 0.2 kg (0.4 lb)
• Gross Weight 0.48 kg (1.06 lb)
• Dimensions (W × H × D)105 mm × 27.6 mm × 83.1 mm (4.1” × 1.1” × 3.3”)
• Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)
• Storage Temperature–40 °C to 85 °C (–40 °F to 185 °F)
• Operating Humidity 5% to 95% (no condensation)
• Relative Humidity 5% to 95% (no condensation)
• Power Supply 48 VDC, 0.8 A
• Max. Power Consumption 38 W
• Power Consumption in Idle 3 W
• Installation Mode Desk-Mounted,Wall-Mounted
• Surge Protection 6 KV
